FCB-MA130
FCB-MA130
This product is now obsolete
This is no longer in our current product line up. Click the button below to contact us and we will advise you on which of our current products meets your specific requirements.
Sony has expanded its popular FCB Block Camera Series with the introduction of an ultra-compact, all-in-one color camera – the FCB-MA130 – supporting both moving pictures and still images.
With its modest dimensions, the FCB-MA130 contributes to reducing the size of finished products, and this can be useful in wide range of applications.
Key Features
Features
Specifications
Downloads
Resources
Incorporating a 1/2.45-type Exmor™ CMOS sensor and Sony’s original image signal processor, this new camera enables users to capture Full HD resolution (1080p/30) movies and 13-megapixel still images.
The FCB-MA130 features several other useful functions, including embedded Image Stabilizer and Face Detection, thanks to Sony’s original image signal processor.
Outstanding compactness coupled with high-quality images – with these capabilities, Sony anticipates this remarkable camera is set to open up brand new industrial applications.
KEY FEATURES
Compact Size

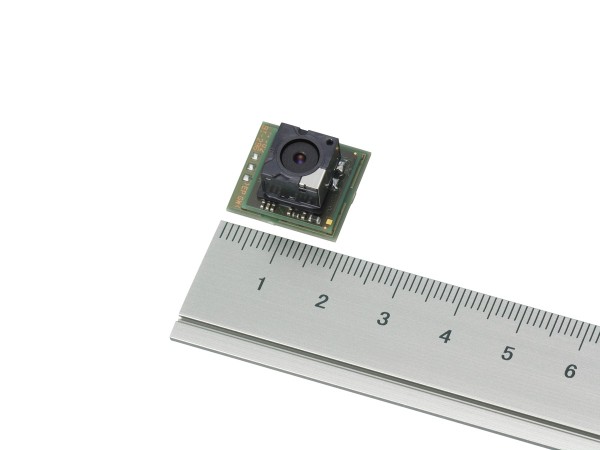

The FCB-MA130 is extremely compact, measuring just 16.5 x 10.3 x 18.0 mm (21/32 x 13/32 x 23/32 inches), and can be easily integrated into space-restricted products.
Supports Still Images and Video
The FCB-MA130 supports high-quality images.
It achieves Full HD (1080p/30) quality moving pictures and 13-megapixel still images in a single unit.
Superb Picture Quality
Thanks to Sony’s renowned high-quality Exmor image sensor and Sony’s original image signal processor, the FCB-MA130 delivers superb picture quality in both still
images and moving pictures.
In addition to these technologies, picture quality is optimized by precise adjustment previously developed by Sony during production of mobile phone camera
modules.
Auto Focus
This camera offers a one-push auto focus (AF) function for ease of use.
Sony’s Original Image Processor
Many useful features are achieved thanks to Sony’s original image processor:
• Image Stabilizer
• Face Detection
• Wide Dynamic Range (ATR)
• Noise Reduction (3DNR)
• 16x Digital Zoom
| Sensor | |
|---|---|
| Key Features | |
| Resolution | |
| Video format | |
| Speed | |
| Optical zoom (lens) | |
| Digital zoom | |
| Super resolution zoom | |
| Storage | |
| Lens | |
| Live view | |
| Width | |
| Height | |
| Depth | |
| Weight | |
| Interface | |
| Video output | |
| Partial scan/binning | |
| IEEE1588 compliant | |
| HW & SW trigger | |
| Noise filter | |
| DC 12 V (PoE) | |
| Shading/ defect correction | |
| Frame accumulation | |
| WDR | |
| LUT | |
| FOV | |
| External synchronization | |
| Power consumption | |
| Image stabilization | |
| Noise reduction | |
| Visca command | |
| Sensitivity | |
| Others |
