Micro Colour Camera Block

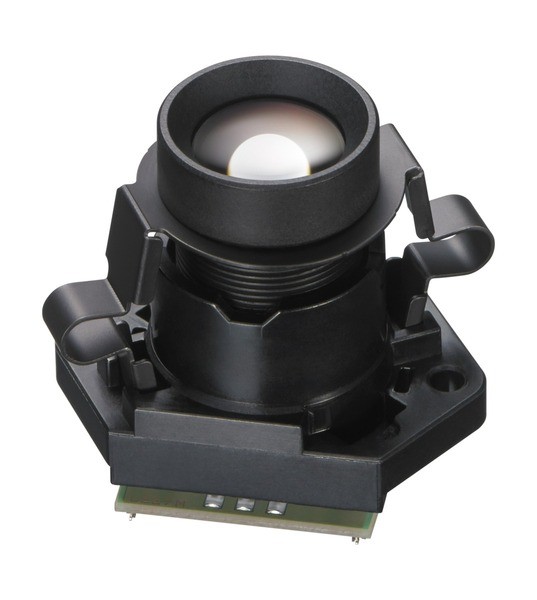

Sony is expanding its popular FCB Micro ultra-compact, all-in-one colour camera with the introduction of the FCB-MA131 which incorporates a new 28° horizontal angle of view lens.

With its modest dimensions, the FCB-MA131 makes it possible to deliver FHD video and 13MP still images into discrete applications or for where available space is limited.

Key Features


Incorporating a 1/2.45-type Exmor™ CMOS sensor and Sony’s original image signal processor, this new camera enables users to capture Full HD resolution (1080p/30) movies and 13-megapixel still images.

The FCB-MA131 incorporates a fixed lens with horizontal angle of view of 28° making it idea for applications where a narrow angle of view is required.
The FCB-MA131 features several other useful functions, including embedded Image Stabilizer and Face Detection, thanks to Sony’s original image signal processor.
Outstanding compactness coupled with high-quality images – with these capabilities, Sony anticipates this remarkable camera is set to open up brand new industrial applications.
Compact Size
The FCB-MA131 is extremely compact, measuring just 28.0 x 26.0 x 18.9 mm (11/8 x 11/16 x 3/4 inches), and can be easily integrated into space-restricted products.
Supports Still Images and Video
The FCB-MA131 supports high-quality images.
It achieves Full HD (1080p/30) quality moving pictures and 13-megapixel still images in a single unit.
Superb Picture Quality
Thanks to Sony’s renowned high-quality Exmor image sensor and Sony’s original image signal processor, the FCB-MA131 delivers superb picture quality in both still
images and moving pictures.
In addition to these technologies, picture quality is optimized by precise adjustment previously developed by Sony during production of mobile phone camera
Sony’s Original Image Processor
Many useful features are achieved thanks to Sony’s original image processor:
• Image Stabilizer
• Face Detection
• Wide Dynamic Range (ATR)
• Noise Reduction (3DNR)
• 16x Digital Zoom
