Perfection in Reflection. The new polarising camera range from Sony

Learn more
New
XCG-CP510_XPL-SDKLJ

XCG-CP510_XPL-SDKLJ

The XCG-CP510/CL polarization camera and SDK for polarization cameras works with NVIDIA Jetson systems,which are widely used in AI systems incorporating edge computing.

Add to comparison tool Start compare

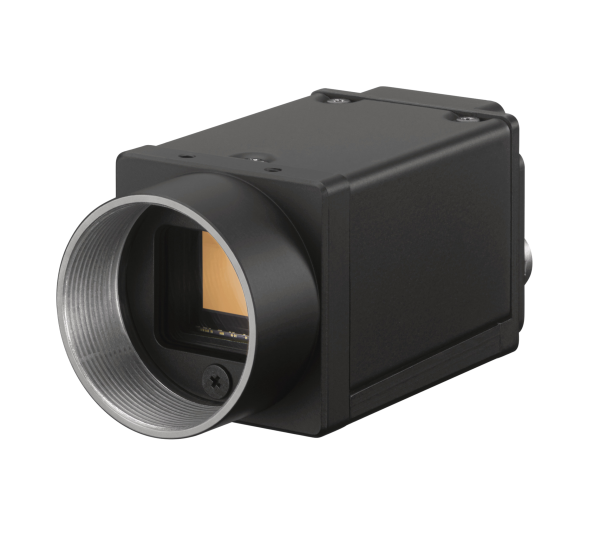

XCG-CP510/CL (B/W)

  • 2/3-type Polarization Image CMOS Sensor with Global Shutter Function (Pregius)
  • 5.1MP 23 fps XPL-SDKLJ
  • SDK for Polarization Camera (for NVIDIA Jetson)

*XCG-CP510/CL includes license of XPL-SDKLJ
IMAGE SENSING SOLUTIONS Digital Polarised Technology
www.image-sensing-solutions.eu
The following are made possible through the use of edge computing to analyze and process data: (1) More instantaneous processing (2) System downsizing (3) Reduction of data transmission cost.

Canceling car windshield reflection by processing polarization, allows for the inside of cars to be captured clearly, something that proved to be a difficult up until this point in the ITS market.

This clarity makes it easy to identify illegal smartphone use while driving or to verify whether drivers or passengers are wearing a seatbelt.

Key Features

Features Specifications Resources

Capture a polarized image with one shot

Each individual pixel has one of four different linear polarization filters which enables four different polarization images to be captured simultaneously.

Each calculation unit composed of four-pixel block supports calculation of “Polarization directions” and “Degree of Polarization (DoP)” based on luminance value on each pixel.

Feature-rich
The polarization camera SDK enables the following polarization image processing.

  • Degree of Polarization (DoP)
  • Surface Normal
  • Reflection Removal
  • Reflection Enhancement. Work efficiency
  • The polarization camera SDK enables easy polarization application development.
  • Sony provides a viewer application, library, and sample source code
Sensor 2/3 Type CMOS sensor (Pregius)
Key Features resolution, partial scan / binning, compact size, IEEE 1588 compliant, noise filter, PoE/DC 12 V, LUT, sensor, speed, interface, WDR
Resolution 5.1 MP
Video format
Speed 23
Optical zoom (lens)
Digital zoom
Super resolution zoom
Storage
Lens
Live view
Width 29
Height 29
Depth 42
Weight 65g
Interface GigE Vision 2.0
Video output
Partial scan/binning
IEEE1588 compliant
HW & SW trigger
Noise filter
DC 12 V (PoE)
Shading/ defect correction
Frame accumulation
WDR
LUT
FOV
External synchronization
Power consumption 3.3W
Image stabilization
Noise reduction
Visca command
Sensitivity
Others


Case studies

Interview with Polarization camera Developers & Product Planner

Sony’s polarization cameras XCG-CP510 and SDK enable image processing of subjects, which was difficult to realize with conventional machine vision cameras. Here, I asked the developers about the many attractions hidden in this “polarization camera".The interview will provide answers to user questions on the following points.

  • What is polarization?
  • What is the mechanism of polarization cameras? What are the merits?
  • What can they be used for?
More information
