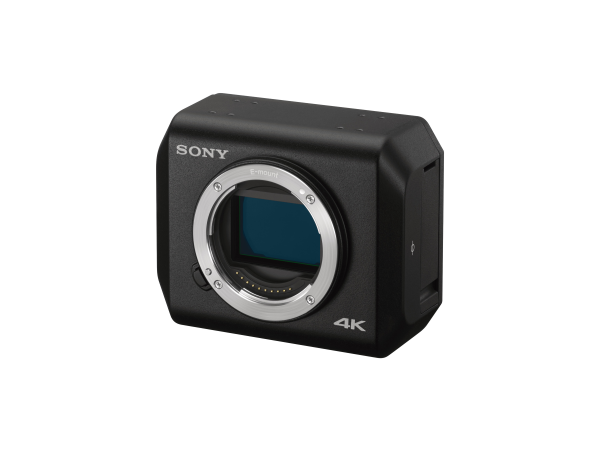

UMC-S3CA
Sony has made available a new range of special B2B cameras derived from a rich heritage of Sony consumer and professional camera technology. The UMC-S3CA has been specially developed for B2B applications such as UAV and mobile use where available space and weight is at a premium but picture quality and performance cannot be compromised.
This product is now obsolete
This is no longer in our current product line up. Click the button below to contact us and we will advise you on which of our current products meets your specific requirements.
Suggested replacements:
Interchangeable Lens Camera Range
Designed for industrial applications the UMC-S3CA is based on a 35mm full-frame Exmor™ CMOS sensor capable of extraordinary low light performance with ultra-high sensitivity of ISO409600 supporting 4K internal recording in almost total darkness.
The UMC-S3CA records crisp, clear 4K/29.97P/25P colour video using the advanced XAVC S format, at up to 100 Mbps, as well as delivering very low noise 12MP colour still images. The camera can be controlled via multi terminal, remote controller or a PC and compatible software.
Compact and light weight at only 390g, this 4K video camera comes equipped with E-mount lens compatibility providing maximum flexibility and choice of optics to support a wide range of remote shooting, inspection and mobile applications.
The UMC-S3CA is available through Sony Image Sensing Solutions for selected applications and projects. Please contact Sony for more information.
Key Features
Features
Specifications
Resources
Contact Sony For More Information
| Key Features | resolution, compact size, optical zoom, digital zoom, image stabilization, external synchronization, interface, power consumption, minimum illumination, recording mode |
|---|---|
| Sensor | 35 mm Full frame Exmor CMOS |
| Resolution | 12.2 MP |
| Video format | 4K |
| Speed | |
| Optical zoom (lens) | |
| Digital zoom | |
| Super resolution zoom | |
| Storage | SD card |
| Lens | Emount lens (Sony compatible) |
| Live view | |
| Width | 66 |
| Height | 65 |
| Depth | 57 |
| Weight | 410g |
| Interface | USB |
| Video output | |
| Partial scan/binning | |
| IEEE1588 compliant | |
| HW & SW trigger | |
| Noise filter | |
| DC 12 V (PoE) | |
| Shading/ defect correction | |
| Frame accumulation | |
| WDR | |
| LUT | |
| FOV | |
| External synchronization | |
| Power consumption | 19W |
| Image stabilization | |
| Noise reduction | |
| Visca command | |
| Sensitivity | 0,004 Lx color |
| Others | Genlock applicable |
| accuracy | |
| distance range |
