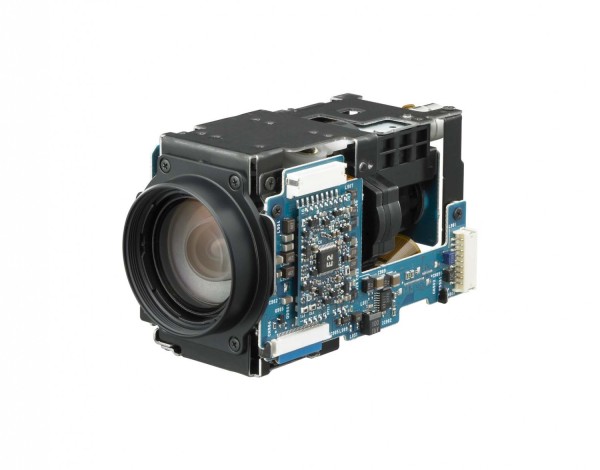

FCB-IX47C/P

The high-performance Sony FCB-IX colour block camera series, providing high-quality images and excellent sensitivity – These block cameras are suitable for integration into a variety of systems for almost any application. The Sony FCB-IX colour block camera series incorporates high-performance Digital Signal Processing (DSP) and firmware that greatly enhance their operation and picture quality compared to conventional block cameras. Inheriting the outstanding features of previous generations of Sony block cameras, Sony FCB-IX Series is ideal for numerous general purpose applications.

The FCB-IX47C/IX47CP colour cameras incorporate a 1/4-type Super HAD™ CCD and feature a 72x zoom ratio (18x optical, 4x digital) and a minimum illumination of 1.0 lx – expanding their vast application appeal. For example, the block camera can be integrated into low vision systems, police cars, photo booths, and document stands. Offering high picture quality and a variety of functions, the FCB-IX Series is ideal for your demanding applications.

  • 1/4-type Super HAD™ CCD
  • 72x Zoom Ratio (18x optical, 4x digital)
  • Minimum Illumination of 1.0 lx (typical)
  • Key Switch Control Compatibility
  • Spot AE
  • E-Flip
  • Field Memory/Freeze Mode
  • High-speed Serial Interface (maximum
  • 38.4 Kb/s) with TTL Signal-Level Control
  • (VISCA protocol)
  • Electronic Shutter/Slow Shutter
  • On-screen Display (date/time/title)
Sensor Ref 0
Sensor Type 1/4 type IT CCD
Auto ICR function No
Freeze Y
Auto Slow Shutter Y
Slow Shutter Function Y
Wide Dynamic Range No
Signal System PAL
Picture Elements 440000
Horizontal Resolution 460
Lens x18 Zoom
Lens - Detail 0
Lens - f stops 0
Zoom Movement Speed 0
Digital Zoom 0
Angle of View H (WIDE) 0
Min Working Distance (WIDE) 10
Min Working Distance (tele) 800
Sync System Internal
Recomended Illumination 100
Minimum Illumination 1
Minimum Illumination 2 0
SN Ratio 0
Electronic Shutter Speed 1
White Balance Auto, ATW, Indoor, Outdoor, One-Push, WB, Manual WB
Gain 0
AE Control Manual, Bright, Auto, EV compensation, Priority mode, Back light compensation
EV Compensation -10
Flicker Compensation Auto
Spot AE Y
Focusing System One-push AF, Manual, Infinity, Zoom Trigger AF, SMART lens control, Auto (Sensitivity :H-L), Interval
Picture Effects Neg. Art, Black&White, Mirror image (LR reverse), vertical E-Flip
Character Generator Yes
Date/Time Display Y
Grid/Cross Disaply Grid + cross
Privacy Zone Masking Yes (with Spherical Pan/tilt)
Privacy Zone masking Detail (24 mask, 8 on screen, 160x120 matrix)
Interlock with pan, tilt and zoom Yes (Spherical interlocking)
Alarm function Yes
Camera Operation Switch Zoom TELE, Zoom WIDE
Aperture Control 16 steps
Preset 6 positions, 1 custom/power on preset
User Memory 16
Serial Interface 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, Stop bit 1/2 bit, VISCA protocol (RS232/TTL)
External Key Switch Y
AF LED Y
Visca Model ID 43
Video Output VBS:1.0 Vp-p (Sync Negative) Y/C Output
Connector 12-pin FFC, 9-pin, 10-pin
Lens Mount Adapter Y
Lens Diameter 34
Supplied Accessories 9-pin harness, 10-pin harness, 12-pin FFC
Storage Temperature Humidity -20
Operating temperature/ Humidity 0
Power Consumption 1
Power Voltage 6
MTBF (excluding lens) 0
Weight 170
Width 48 mm
Depth 92
Height 56 mm
Order Quantity 1
Overvoltage protections on I/O Yes

N/A
