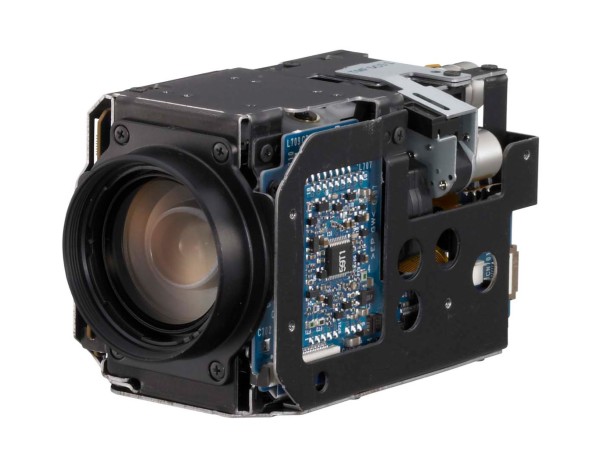

FCB-PV480

The popular Sony FCB colour camera block series are used in a variety of applications ranging from surveillance to traffic monitoring and in many other visual communication environments. These cameras are specifically designed to easily integrate into security domes, police vehicles, photo booths, document stands, videoconferencing, and low vision systems.

Key Features

features

Sony is expanding its FCB camera series to include for the first time Progressive Scan (PS) colour block models. The FCB-PV Series features Progressive Scan CCD technology with square pixels, Primary Colour filters for precise colour reproduction, and a digital YUV 4:2:2 interface. The new FCB-PV480 colour block camera incorporates a 1/4-type Super HADTM PS CCD with an 18x optical zoom lens. The ultra-compact FCBPV10 colour block camera incorporates a 1/4-type Super HAD PS CCD with a 10x optical zoom lens. In addition, the FCB-PV480 camera can operate with a minimum illumination of 1.6 lux and is equipped with Auto ICR (IR cut filter removal) for near-infrared sensitivity. Both cameras output a VGA size image (640 x 480) and offer frame rates of 29.97 or 25 fps (switchable).



These FCB-PV cameras are the perfect match for IP camera applications that require a direct digital video connection. With their digital video interface, the FCB-PV series enables OEM s to easily integrate these cameras with fewer conversions such as A/D and I/P (interlace to progressive) in their systems, resulting in outstanding image quality and lower system cost.



The new Sony FCB-PV Series combines unique features with many convenient functions inherited from previous FCB models. These FCB-PV cameras are an optimum solution for high-speed shooting applications, such as traffic monitoring, license plate capture, and monitoring from mobile police vehicles, thanks to its progressive scan CCD sensor that produces high-quality images with crisp edges. These FCB-PV cameras are also a powerful solution when it comes to still image applications. With their Primary Colour filters and square pixel CCD, the FCB-PV cameras achieve precise colour reproduction and exceptional picture quality - a must for videoconferencing, low vision, photo booths, and document stands.



• Progressive Scan Colour Block Camera with Auto Focus Zoom Lens



• 1/4-type Super HAD CCD – Approximately 330,000 pixels



• Excellent Colour Reproduction with Primary Colour Filters



• 18x Optical Zoom Capability



• Digital Interface with Selectable Modes



• Clear Capture of Moving Objects Sharp, Clean Edges



• Auto IR-Cut Filter Removal (ICR)



• Advanced Spherical Privacy Zone Masking Function with Mosaic Effect



• Electronic-Flip (E-Flip) Function



• Alarm Functions



• Picture Freeze Function



• Spot AE Function



• Electronic Shutter/Slow Shutter (long time exposure)



• High-Speed Serial Interface (max. 38.4 Kb/s) and TTL Signal- Level Control (VISCATM protocol)



• Various Customizable Settings



• Internal Sync.



• Low Power Consumption(1.6 W when motors are inactive)



• 16-Bytes of Available Memory for Recording Data such as Product Serial Number



• Lead-free Solder and Halogenfree Printed Circuit Boards



specifications



Image sensor

1/4-type Super HAD CCD



Number of total pixels

Approx. 330,000 pixels [659(H) x 494(V)]



Image size

VGA (640 x 480)



Lens

18x zoom, f=4.1 mm (wide) to 73.8 mm (tele), F1.4 to F3.0



Viewing Angle (H)

 48° (wide end) to 2.8° (tele end)



Minimum working distance

290 mm (wide end), 800 mm (tele end)



Sync system

Internal



Minimum illumination

1.6 lx (F1.4, 50 IRE)



S/N ratio

More than 50 dB



Electronic shutter

1/1 to 1/10,000 s (22 steps)



White balance

Auto, AT W, Indoor, Outdoor, One-push, Manual



Gain

Auto / Manual (-3 to 28 dB, 2 dB steps)



AE control

Auto, Manual, Priority mode (shutter priority & iris priority), Bright



Backlight compensation

On/Off



Privacy zone masking

On/Off (24 positions)



Focusing system

Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF



Picture effects

E-Flip, Black & White, Mirror Image



Video output

YUV 4:2:2 (16-bit/13.5 MHz or 8-bit/ 27.0 MHz)



Camera control interface

VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, 1 or 2 stop bit selectable



Storage temperature

-20°C to 60°C (-4 to 140°F)



Operating temperature

0°C to 50°C (32 to 122°F)



Power consumption

6.0 V to 12.0 V DC 1.5 W (motors inactive), 2.7 W (motors active)



Dimensions (W x H x D)

52.0 x 57.5 x 92.6 mm (2 1/8 x 2 3/8 x 3 3/4 inches)



Lens adaptor screw

Yes



Mass

230 g (8.1 oz)



Supplied accessories

24P FFC, 10P FFC, 4P-4P harness, Ferrite ring



accessories

Supplied accessories:

  • 24P FFC
  • 10P FFC
  • 4P-4P harness
  • Ferrite ring
