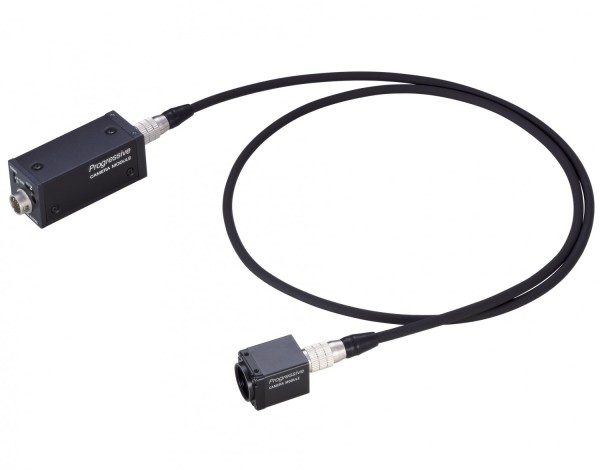

Designed to comply with the pin-out of Sony’s discontinued XC-55BB camera, Sony’s new two piece, black and white progressive scan video camera - the XC-56BB - incorporates a 1/3-type progressive scan CCD that produces detailed, VGA resolution images at a high frame rate (30 fps).
• 1/3 inch Progressive Scan CCD with square pixels
• Non-TV format
• Square lattice/Full pixel read-out
• Effective Picture Elements - 659 (H) x 494 (V)
• NF Lens Mount
• High Rate Scan /Binning Function - 30 frames per sec./60 frames per sec. Binning
• Sync System - Internal/External (auto)
• External Sync System - HD/VD (2 to 5 Vp-p)
• Gain - Manual/Fixed switchable
• Gamma - OFF (y=1)
• High Shock and Vibration Resistance
• Miniature Size
• External Trigger Shutter: 1/4 to 1/100,000 sec
• Cable length: 2 m
• Lead-free soldering
• Same Pin Assignment as XC-55BB camera
Image Device
1/3 type Progressive Scan CCD
Effective Pixel Elements (HxV)
659 X 494
Effective Lines (HxV)
647 X 493
Output Image Size
VGA class (647 x 494)
Cell Size (HxV)
7.4 x74.4 μm
Lens Mount
NF mount
Flange Focal Length
12.0 mm
Sync System
Internal/External (automatically switched according to input signal
External Synchronisation
HD/VD (HD/VD level: 2 to 5 Vp-p)
Input / Output
HD/VD (2 to 5 Vp-p 75 Ω)
Alowable Frequency Deviation
± 1% (in horizontal synchronous frequency)
of External Synchronisation
1.0 Vp-p, sync negative, 75 Ω, unbalanced
H Jitter
Less than 20 ns
Scan Lines
525-lines/236-lines (Normal mode/Binning mode)
Video Output Mode
Normal: 1 -line sequential output 29,97 fps /
Binning: F2 -line sequential output 59,94 fps
Video Output
1.0 Vp-p, sync. Negative, 75 ! , unbalanced
Horizontal Frequency
15,734 KHz
Output Signal Frequency
29,97 Hz (Normal mode)/59,94 Hz (Binning Mode)
Horizontal Resolution
500 TV lines
Sensitivity
400 lx (F8, y= OFF, FIX GAIN (0dB)
Minimum Illumination
0,5 lx (F1,4 y= OFF, GAIN + 18dB)
S/N Ratio
58 dB
Gain
Fixed/Manually Adjustable
Gamma
1 (fixed)
White Clip
820 mV ± 70mV
Shutter Mode
Normal Shutter, Restar t/Restet,
External Trigger shutter mode (Mode1/Mode2)
Normal Shutter Speed
1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/15000 s
External Trigger Shutter
DIP switch setting 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000,
1/10000 s, 1/25000, 1/50000, 1/100000 s
Trigger pulse width settings: 1/4 to 1/100000 s
External Trigger
Polarity: +, 2μs to 250 ms ; Input impedence: 10k! or more (H:+2 to 5,0V, L: 0 +0,6V)
Pin Assignment
Correspondence to EIAJ compliant 12PIN connector pin assignment Unvailable (No.8
pin: Trigger input (G), No.9 pin: Trigger input, No. 10 pin: GRD, No. 11 pin: + 10V)
Pins No.10 and 11 are not connected inside the camera
Power Requirements
+12 V DC (range: +10.5 to 15V)
Power Consumption
2.2 W
Dimensions (WxHxD)
CHU: 22 x 22 x 30 mm
CCU: 29 x 29 x 67 mm
Mass
CHU: Approximately 40g
CCU: Approximately 100g
Operating Temperature
-5 to 45°C
Storage Temperature
-30 to 60°C
Performance Guarantee Temperature
0 to 40°C
Operating Humidity
20 to 80% (no condensation)
Storage Humidity
20 to 95% (no condensation)
Vibration Resistance
10G (20Hz to 200Hz)
Shock Resistance
70 G
MTBF
73.800 Fit (appox. 8,4 years)
Regulation
UL 6500, FCC Class A Digital Device, CE (EN61326/97 + A1/98)
Supplied Accessories
Lens mount cap (1), Operating Instructions (1),
Dedicated cable (1), Ferrite core (1)
