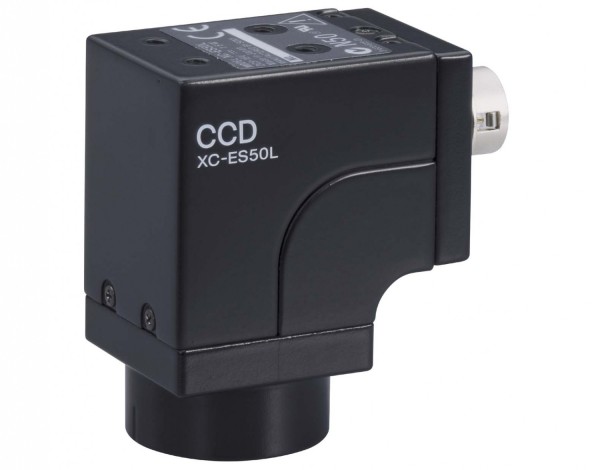

XC-ES50L/CE
The XC-E Series are compact, lightweight one-piece black and white cameras incorporating the latest 1/2 and 1/3 type Interline (IT) CCD which produces new levels of picture detail.
Key Features
features
• 1/2 type IT CCD
• Compact and light weight: 29 (W) x 42.5 (H) x 43.8 (D) mm, 110 g
• Minimum illumination at F1.4: 3.0 lx
• High S/N Ratio: 60 dB
• Electronic shutter function: 1/100 to 1/10,000 s: EIA, 1/120 to 1/10,000 s: CCIR
• Flexible trigger shutter function
• Scanning system: 2:1 interlaced
• Frame/field exposure
• Restart/reset function
• Synchronization: internal/external (HD/VD)
• High shock and vibration tolerance
specifications
Image device
1/2 type IT CCD
Effective picture elements
XC-ES50L: 768 (H) x 494 (V)
XC-ES50LCE: 752 (H) x 582 (V)
Signal system
XC-ES50L: EIA (standard)
XC-ES50LCE: CCIR (standard)
Horizontal frequency
XC-ES50L: 15.734 kHz
XC-ES50LCE: 15.625 kHz
Vertical frequency
XC-ES50L: 59.94 Hz
XC-ES50LCE: 50 Hz
Cell size (μm)
XC-ES50L: 8.4 x 9.8
XC-ES50LCE: 8.6 x 8.3
Lens mount
C mount
Flange back
17.526 mm
Sync system
Internal/External (auto)
External sync system
HD/VD (2 to 5 Vp-p)
External sync frequency
± 1 %
Jitter
Less than ± 50 nsec
Scanning system
2:1 Interlaced
Video output
1.0 Vp-p, negative, 75 Ω unbalanced
Horizontal resolution
XC-ES50L: 570 TV lines
XC-ES50LCE: 560 TV lines
Sensitivity (Gamma ON, MIN GAIN, No IR cut filter)
400 lx F4
Minimum illumination*
3.0 lx
S/N ratio
60 dB
Gain
AGC/Manual selectable
Gamma
ON/OFF selectable
Normal shutter
XC-ES50: 1/100 to 1/10,000 s
XC-ES50CE: 1/120 to 1/10,000 s
External trigger shutter**
XC-ES50: 1/4 to 1/10,000 s
XC-ES50CE: 1/4 to 1/8,000 s
Power requirements
DC 12 V (+9 to +16 V)
Power consumtion
1.6 W
Dimension (W) x (H) x (D)
29 x 42.5 x 43.8 mm
(1 3/16 x 1 11/16 x 1 3/4 inches)
Mass
110 g (4 oz)
Operating temperature
-5 to +45 °C (23 to 104 °F)
Operating humidity
20 to 80 %
Storage temperature
-30 to +60 °C (-22 to +140 °F)
Storage humidity
20 to 95 %
Vibration resistance
10 G (20 to 200 Hz)
Shock resistance
70 G
MTBF
126,000 hrs.
Regulatory compliance
UL1492, FCC Class B Digital Device, CE (EN61326/97 + A1/98), AS4251.1 + AS4252.2
Supplied accessories
Lens mount cap (1), Operating instructions (1)
* (F1.4, AGC ON, without IR cut filter)
** Using Dip switch on the rear panel or Using trigger pulse width
accessories
Optional Accessories:
Compact camera adaptor
DC-700CE
- Compact, lightweight (700 g)
- External sync IN/OUT
- Trigger input/WEN output
- New EIAJ standard 12-pin connector
- Dimensions: 110 (W) x 53 (H) x 160 (D) mm
Tripod adaptor
VCT-333I
- ABS
- Approx. 6.1 g
- Dimensions: 18 (W) x 6 (H) x 2.9 (D) mm
12-pin camera cable (CE standard)
• CCXC-12P02N (2 m)
• CCXC-12P05N (5 m)
• CCXC-12P10N (10 m)
• CCXC-12P25N (25 m)
Junction Box
JB-77
