XCL-U1000
XCL-U1000
XCL-U1000

XCL-U1000

XCL-U1000
Add to comparison tool Start compare
This product is now obsolete

This is no longer in our current product line up. Click the button below to contact us and we will advise you on which of our current products meets your specific requirements.

The XCL High Resolution Series from Sony is the perfect fit for a variety of industrial inspection applications such as microscopy, semiconductors, electronic parts, and display panels.

All the cameras in this series conform to the Camera Link standard. The XCL Series delivers outstanding functionality and excellent picture quality, bringing a new level of power and effectiveness to industrial applications.

* PoCL (Power over Camera Link)

Key Features

Features Specifications Accessories Downloads Resources

High Resolution Image Capture

The XCL-U1000 camera is equipped with a 1/1.8 type progressive scan IT CCD that provides UXGA resolution, which is ideally suited for a variety of industrial applications requiring high-quality images.



Supports Camera Link Standard

All cameras in the XCL High Resolution Series are equipped with the industry standard digital Camera Link interfaces. This allows users to quickly capture high-resolution images thanks to simple connectivity with machine vision systems.


Partial Scan Function

If you select only a specific area of an image to be scanned, the reduced data size and increased frame rate will minimize image processing time. The XCL-U1000 features vertical partial scanning.



Hardware Processing

The XCL High Resolution Series cameras have a number of beneficial real-time hardware pre-processing functions such as a 3x3 filter, DTL filter, gammacorrection, and a binarisation mechanism that can be used to emphasise the edges of an object or to change the contrast of an image. These functions provide frame grabbers with images that are easy to process, thus minimising the load on the PC.



Monitor Output

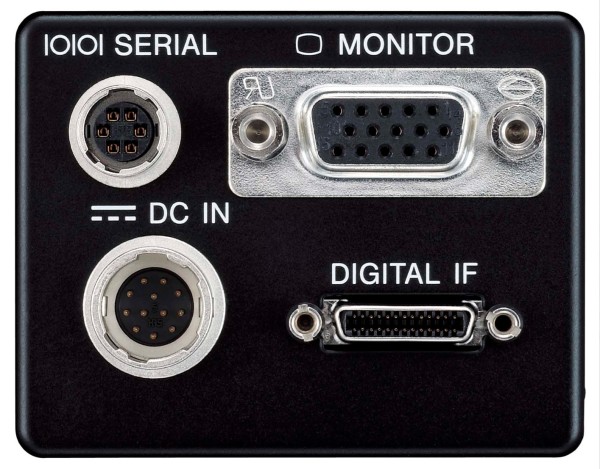

The XCL-U1000 has a 15-pin D-sub connector and the camera can be connected directly to video monitors with UXGA resolution.



High Shock and Vibration Tolerance

• Vibration resistance: 10G (20 to 200 Hz)

• Shock resistance: 70G



Other Features

• C mount lens

• External trigger

• Binning function (B/W mode only)

• Built-in test pattern

Image device

1/1.8 type Progressive scan IT CCD



Standard picture size (H x V)

1,600 x 1,200 pixels (1,920,000 pixels)



Cell size (H x V)

4.4 x 4.4 μm



Resolution depth

10 bits/pixel



Lens mount

C mount



Digital interface

Standard Camera Link, Base Configuration



Frame rate

15 fps



Output data clock

36 MHz (1 Tap)



Sensitivity

400 lx at F5.6 (0 dB)



Minimum illumination

2 lx or less



Gain control

0 to +18 dB



White balance

-



Readout mode

Normal / Binning / Partial scan



Binning

Vertical (1 x 2)



Partial scan

Vertical



Shutter speed

1/15 to 1/10,000 s



Shutter mode

External trigger shutter (Trigger start / Trigger start and exposure duration)



Extended signal output

EXPOSURE



Power requirements

DC 12 V



Power consumption

5.5 W



Dimensions (W x H x D)

56 x 44 x 95 mm (not including protruding parts)



Mass

250 g (9 oz)



Operating temperature

-5 to 45°C (23 to 113°F)



Storage temperature

-30 to 60°C (-22 to 140°F)



Operating humidity

20 to 80 % (no condensation)



Storage humidity

20 to 95 % (no condensation)



Vibration resistance

10 G (20 to 200 Hz)



Shock resistance

70 G



Supplied accessories

Lens mount cap, Operating instructions

Sensor
Key Features
Resolution
Video format
Speed
Optical zoom (lens)
Digital zoom
Super resolution zoom
Storage
Lens
Live view
Width
Height
Depth
Weight
Interface
Video output
Partial scan/binning
IEEE1588 compliant
HW & SW trigger
Noise filter
DC 12 V (PoE)
Shading/ defect correction
Frame accumulation
WDR
LUT
FOV
External synchronization
Power consumption
Image stabilization
Noise reduction
Visca command
Sensitivity
Others

Supplied Accessories:

  • Lens mount cap
  • Operating instructions
